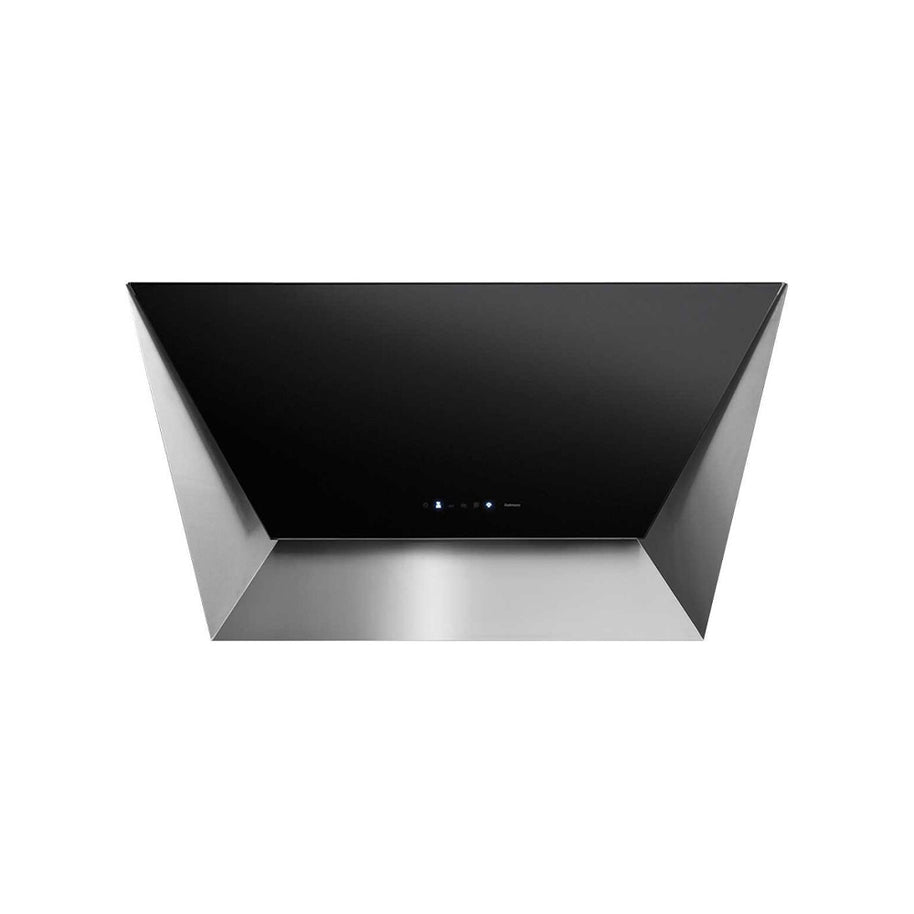

Falmec Prisma 85 - CPQN85.E0P2#ZZZN491F - Chimney Hood
The Prisma hood by Falmec has an attractive design inspired by the shape of the diamond, with its characteristic prism cut! Made of steel and tempered glass, available with white or black finish, Prisma is equipped with double lighting and is in energy class A.
The PRISMA wall-mounted hood by Falmec has a markedly innovative design inspired by the shape of the diamond, with its characteristic prism cut. The conjunction of the trapezoidal shapes of the structure and the upper door in black or white glass, in fact, create the visual effect of a prism, giving the hood a strong characterization and personalization.
Prisma is made of AISI 304 stainless steel with scotch brite finish, combined with a tempered glass plate that houses the touch button panel. In addition to the 4 operating speeds, Prisma offers the 24h function, which allows the recirculation of the air inside the room to improve the quality of the home environment. Once this function is activated, the hood, at a reduced speed, has an operating cycle of one hour followed by a three-hour break. The cycle is repeated until this function is deactivated and this possibility is particularly useful in the extractor version hoods.

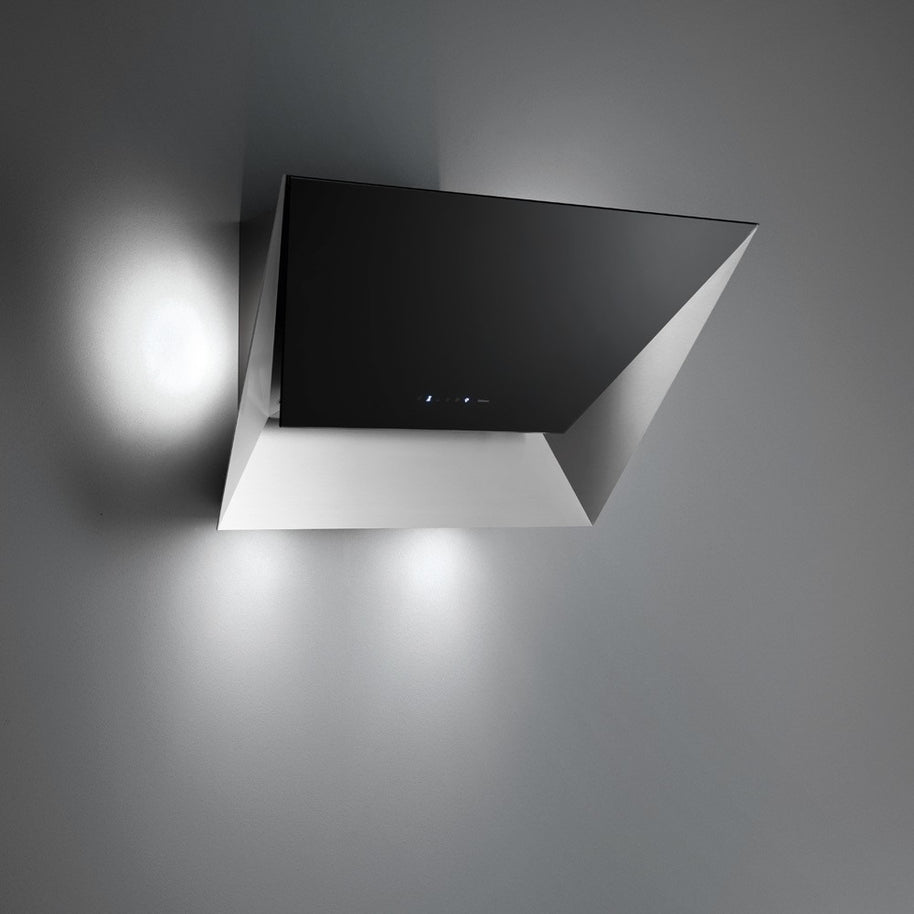

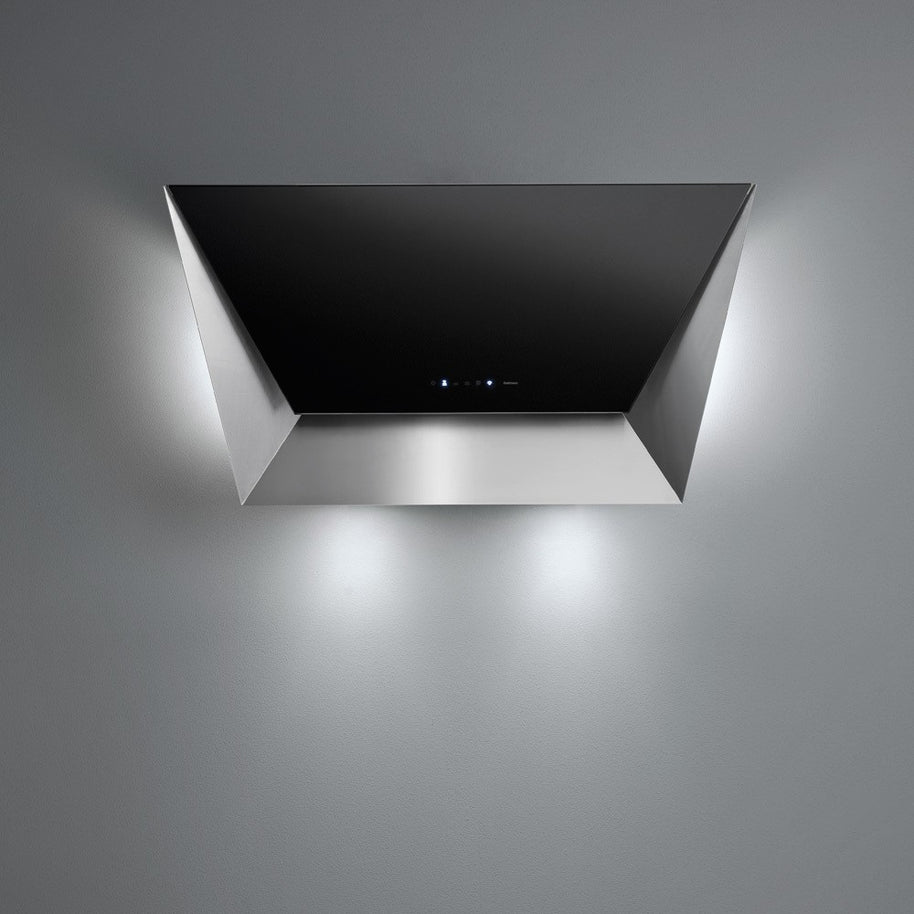

The Prisma hood is equipped with double lighting, one of a functional type, to effectively illuminate the worktop, and a decorative one, which illuminates the environment, highlighting its captivating and irresistible design.
Prisma is available in the width of 85 cm, proposed here, or in the width of 115 cm.
DESIGN COLLECTION - In search of the perfect hood
A restricted selection of models characterized by exclusive aesthetic and functional solutions. Design is the Falmec collection born from different collaborations with established and emerging designers. A continuous and shared " work in progress" that has made it possible to create a range that aspires to absolute perfection: in shapes, materials and technologies.
TECHNICAL FEATURES:
Type of installation: Wall
Dimensions: 85 cm
Generic features:
- Touch control panel + 24h function
- Led ambient light
- Led lighting
- Top filter, removable and washable
- Optional Carbon filter. Combined Zeo, regenerable
- Charcoal filter included
- Possibility of rear exit
- Optional fireplace
Finish: Black tempered glass - Stainless steel, scotch brite finish
Engine: 800 m3 / h
Type of control: touch button panel
Operating speed: 4
Lighting: Led 2x1.2 W - 3200 K
Decorative light: Led 2x1.2 W - 3200 K
ENERGY CLASS A
Minimum distance:
- Electric hob: 52 cm
- Gas hob: 53 cm
ACCESSORIES:
- KCQAN.00 # I Fireplace (Inox)
- KACL.798 # 41F Remote under-roof motor 950 m3 / h
- KACL.770 # 41F Remote under-roof motor 1100 m3 / h Brushless
- KACL.786 # 41F External aspirator 1000 m3 / h
- KACL.796 # 4AF External exhaust fan 1500 m3 / h
- KACL.797 # 4AF Remote under-roof motor 1300 m3 / h
- KACL.941 External filtering unit for inclined hoods
- KACL.815 Protective towel for stainless steel surfaces (box 10 pcs)
CONSUMPTION:
- Maximum consumption 280 W
- Voltage 220-240V
- Frequency 50-60Hz
Data sheet
- EAN: 8034122352039
- Model: PRISMA
- Numerical model: CPQN85.E0P2 # ZZZN491F
- Line: Design
- Category: Wall hood
- Typology: Modern
- Width: 85 cm
- Depth: 44 cm
- Height: 43 cm
- Finish: Stainless steel, Black glass
- Energy class: A
- Controls: Touch control
- Capacity: 800 m3
- Noise: 58 db
- Power: 280W
